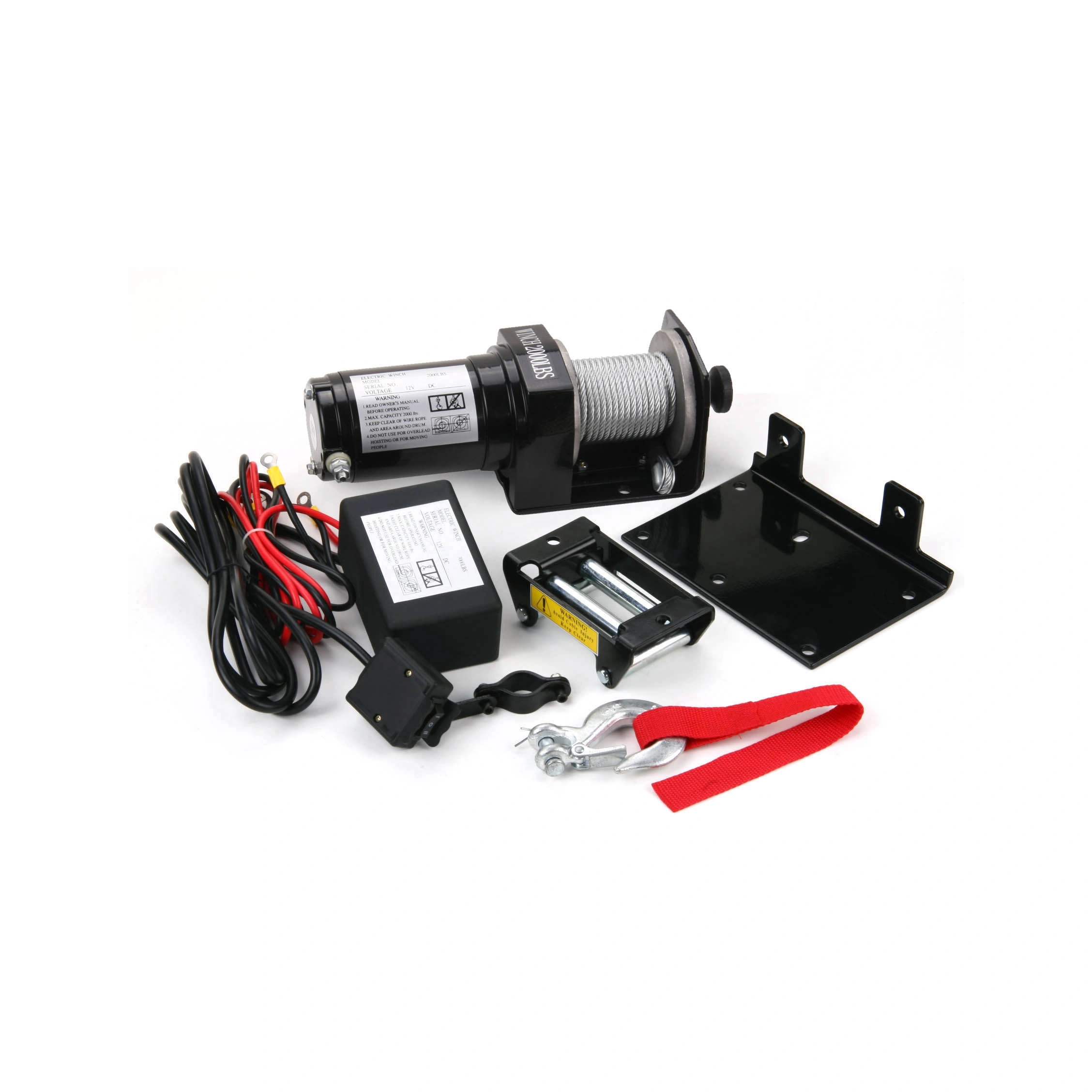

TOPSUN 900kg China treuil electr 12v atv electric winch 2000lb
Related parameters
Share
- Warranty:1 year
- Customized support:OEM, ODM
- Place of Origin:Zhejiang, China
- Brand Name:TOPSUN
- Model Number:KEWC2000
- Power Source:Electric
- Application:ATV/UTV
- Voltage:24V, 12V
- Product Name:Electric Winch
- Rated Line Pull:2000LBS (900kgs) single line
- DC:12V/24V
- Gear train:Differential Planetary
- Capacity:2000LBS
- Control:Remote, option
- Gear train ratio:150:1
- Braking Action:Automatic In-The-Drum
- Cable:4mmx9.2m
- Weight:8kg/pc

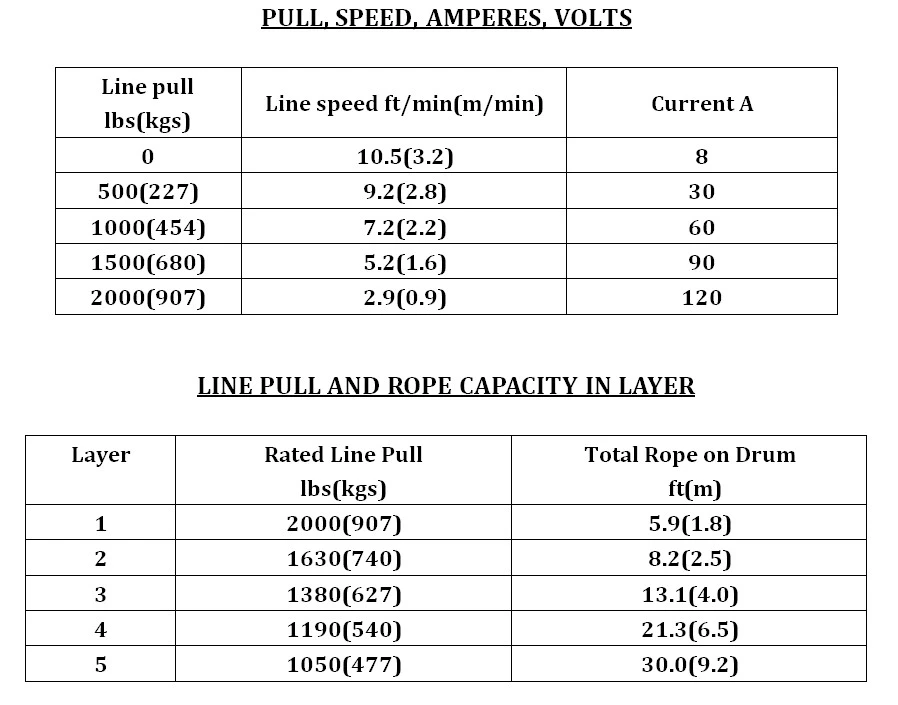

Rated Line Pull | 2000LBS (900kgs) single line |
Motor | Permanent magnet,0.7kw/1.0hp |
Control | Remote switch, for option |
Gear train | Differential Planetary |
Gear train ratio | 150:1 |
Braking Action | Automatic In-The-Drum |
Drum Size | 1.24”(31.5mm) x2.8”(72mm) |
Cable | 4mmx9.2m |
Overall Dimensions | 11.3''x4''x4.1''(286mm X100mm X105mm) |
Mounting Bolt Pattern | 76mm, Ø8.5 |
Weight | 8Kg |
Packing Size | 355 x 265 x 170mm |
